Solenoid Valve

shape

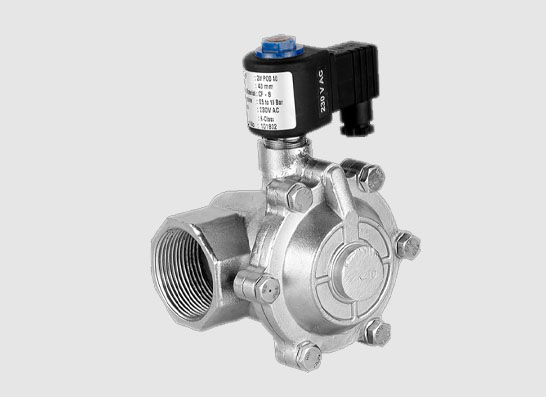

Pilot Operated Diaphragm

Specification	Details
Pipe Size	1/2" to 2" Inch
Pressure	0.5 to 12 Bar
Seal Material	NBR / VITON
Valve Material	CF8
Voltage	AC-220V, DC-12V, 24V

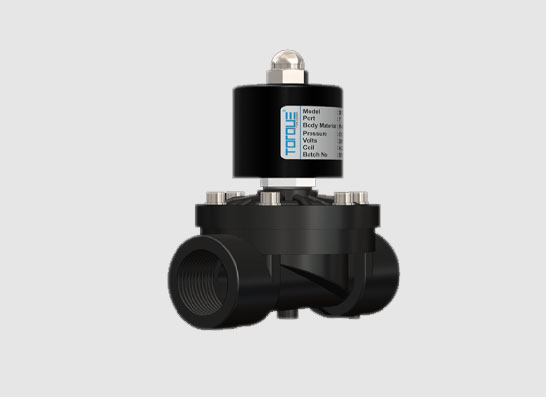

Semi Lift Diaphragm Operated (Nylon)

Specification	Details
Pipe Size	1/2" to 2" Inch
Pressure	0.5 to 12 bar
Seal Material	NBR / VITON
Valve Material	CF8
Voltage	AC-220V, DC-12V, DC-24V

shape

shape

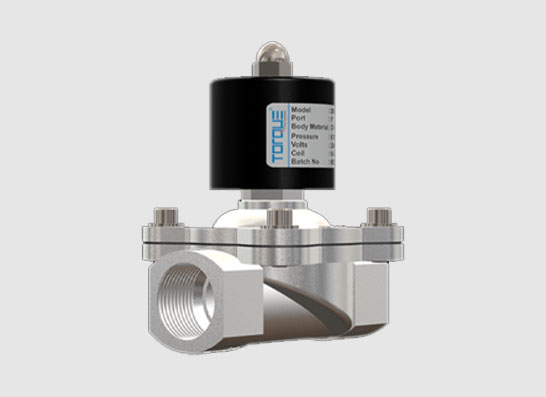

Semi Lift Diaphragm Operated (CF8)

Specification	Details
Pipe Size	1/2" to 2" Inch
Pressure	0 to 7 bar
Seal Material	NBR / VITON
Valve Material	CF8
Voltage	AC-220V, DC-12V, DC-24V

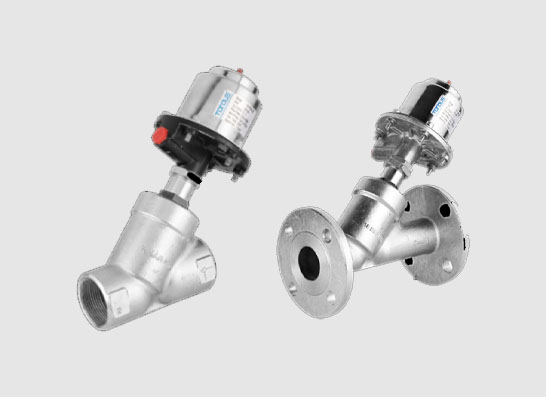

Y-Type Penumatically Control Valve (Screw & Flange)

Specification	Details
Pipe Size	1/2" to 2" Inch
Pressure	0 to 16 bar
Seal Material	PTFE
Valve Material	CF8
Pneumatic Pressure	Min 3.5 kg/cm²
